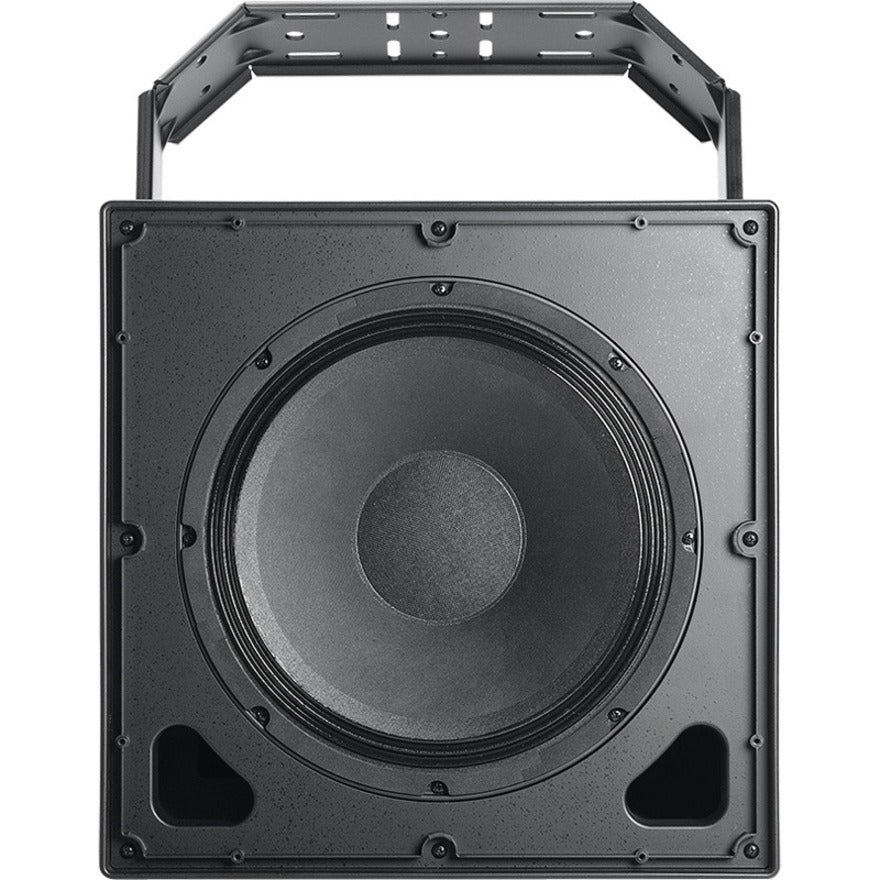

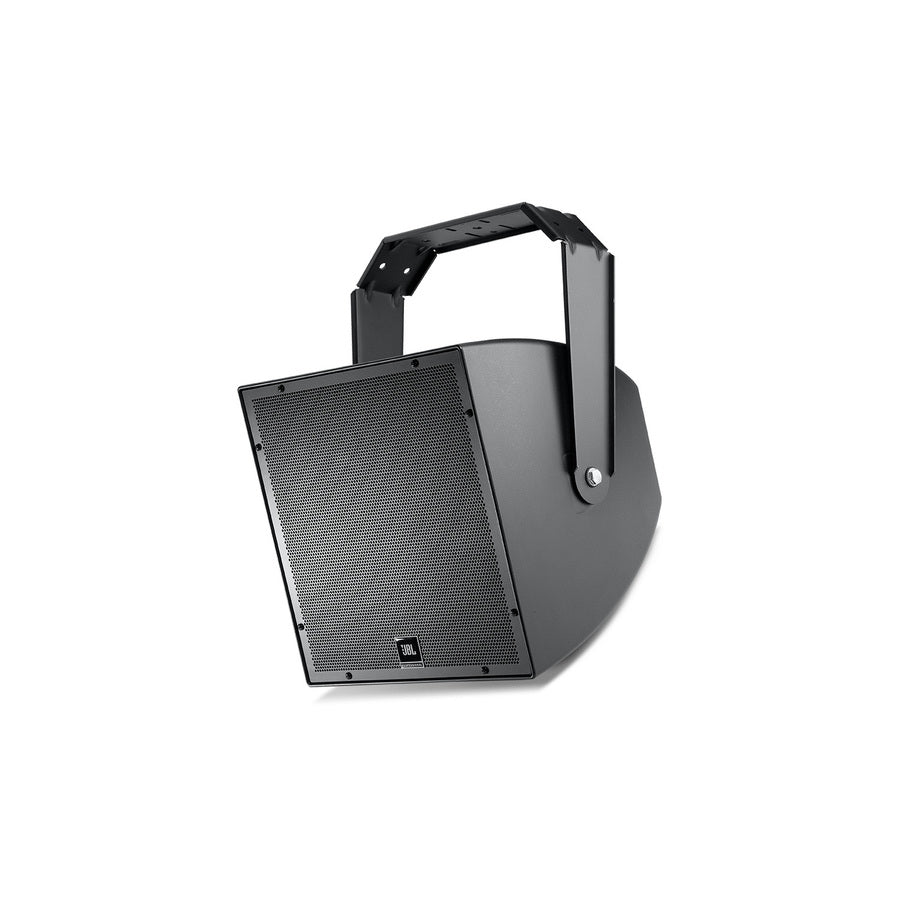

JBL Professional AWC159 2-way Indoor/Outdoor Bracket Mount Speaker - 500 W RMS - Black

Harman International Industries, Inc

AWC159-BK

http://www.harman.com

JBL Professional

AWC

AWC159

AWC159 All-Weather Compact 2-Way Coaxial Loudspeaker With 15" LF

The AWC159 is a compact, coaxial-driver, 2-way, highly weather-resistant full-range loudspeaker system which is ideal for speech and music in a wide variety of applications, including sports facilities, racetracks, stadiums, fairgrounds, rodeos, skating rinks, themed entertainment venues, cruise ships, water parks, outdoor background music/paging systems, swimming pools, and a wide variety of other outdoor or indoor venue types.

The AWC159 is comprised of a high-power coaxial 380 mm (15 in) low frequency driver and 38 mm (1.5 in) high frequency compression driver. The co-axial design utilizes a unique tapered polepiece design and transitions to the cone of the low frequency driver as a large diameter pattern control horn for the high frequencies, both eliminating high-frequency beaming which is common among this category of speaker and extending pattern control to the lowest possible frequencies. The result is a coaxial speaker with wide, extremely consistent 90° coverage on a broadband basis.

Component features include a Kevlar-reinforced low frequency cone for reliability, well-damped surround for smooth frequency response, high temperature 75 mm (3 in) voice coil and a reduced distortion design through saturated-gap magnet geometry. The high frequency compression driver features a unique patented design, high temperature polymer diaphragm, and fluid-cooling for high output levels with low distortion.

The paintable enclosure is constructed of thick ABS plus fiberglass and is heavily braced to maximize low-frequency performance. The corrosion-resistant zinc-rich extra-thick powder coated steel grille is backed with open cell foam and high thread-count mesh, providing excellent protection in the harshest environments. The system is rated IP-56, per IEC529 when installed at minimum 5° down-tilt.

The system is equipped with a 300W 70V/100V multi-tap transformer. Connection is made via outdoor-rated terminals in a recessed terminal cup. A protective terminal compartment cover is included, along with gland nut, which forms a water-tight seal with round-jacketed cable having The high frequency compression driver features a unique patented design, high temperature polymer diaphragm, and fluid-cooling for high output levels with low distortion.

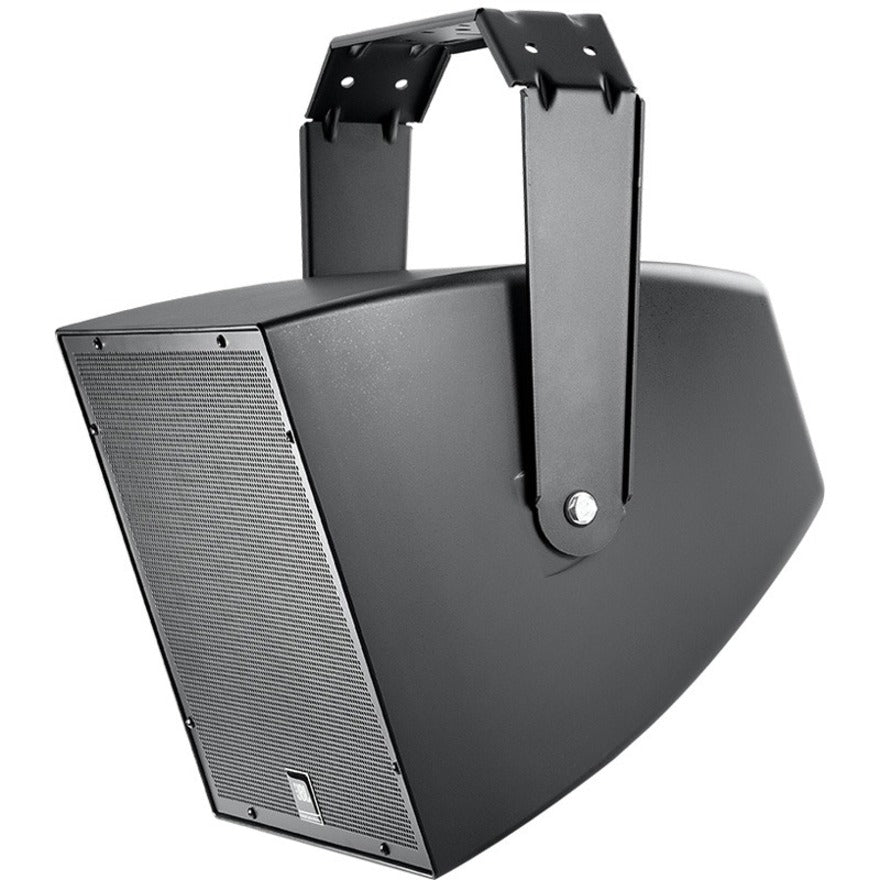

A heavy-duty weather-capable zinc-rich, thick powder coated U-type mounting bracket is included.

Speaker

2-way

500 W

2000 W

15"

Kevlar

1.50"

Polymer

52 Hz

20 kHz

8 Ohm

131 dB

Black

Bracket Mount

Weather Resistant

Indoor/Outdoor

19.1"

19.1"

18.90"

45.41 lb

• AWC159 All-Weather Compact 2-Way Coaxial Loudspeaker With 15" LF
• U-bracket

• Sports Bar
• Racetrack
• Stadium
• Fairground
• Entertainment Center
• Indoor/Outdoor
• Pool
• Rodeo
• Skating Rink
• Cruise Ship
• Amusement Park
