JBL SRX928S Subwoofer System - 1100 W RMS

Harman International Industries, Inc

JBL-P3243MX

http://www.harman.com

JBL

SRX900

SRX928S

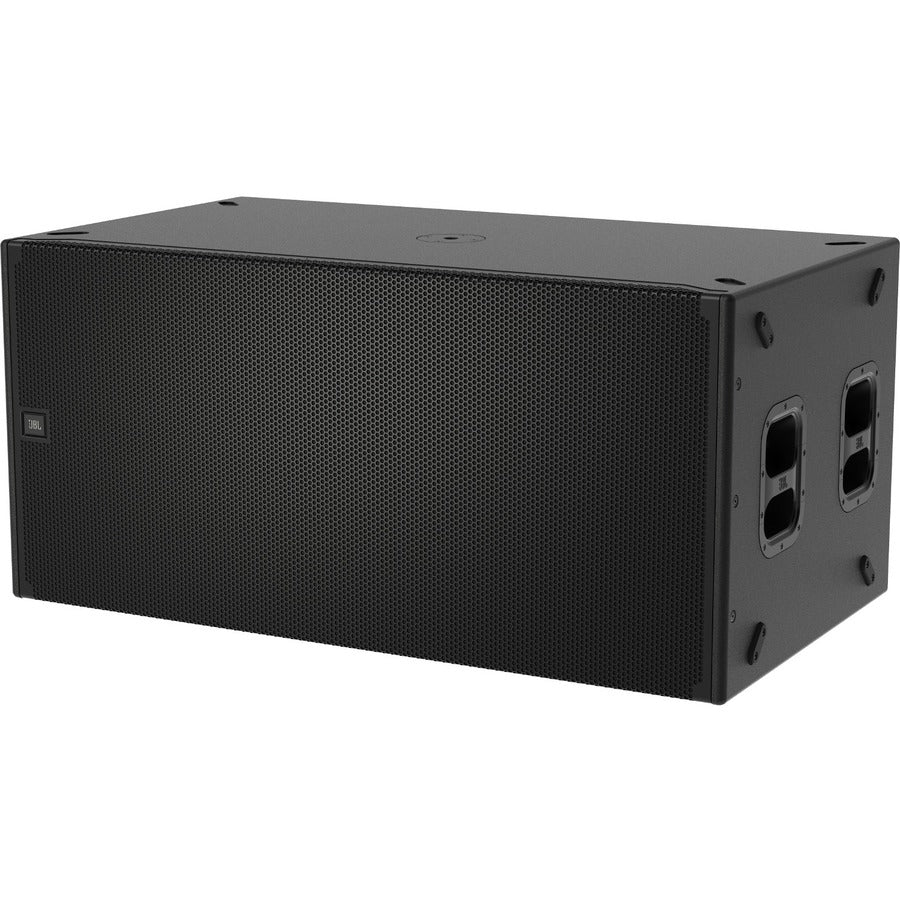

SRX928S Dual 18-inch Powered Subwoofer

BEST-IN-CLASS PERFORMANCE

JBL transducer technology delivers class-leading low frequency performance and superior dynamic range.

CONFIGURABLE

Form cardioid arrays simply by orienting the cabinets and selecting a preset.

POWERED SOLUTION

Onboard Class-D amplification and DSP provide optimum performance and consistency across the world.

COMPLETE SYSTEM

The SRX900 Series is a complete solution featuring full-range products, subwoofers, accessories, and software.

The SRX928S is a dual 18-inch active subwoofer designed to complement SRX900 full-range sound reinforcement systems. The subwoofer houses two JBL 2279-1 18-inch woofers, featuring Differential Drive JBL's dual voice coil, dual gap technology - to deliver better heat dissipation, lower power compression, and wider dynamic range than conventional single-coil designs. Built-in DSP and amplification offer a plug and play experience, while providing consistency and optimum performance anywhere in the world. The SRX928S incorporates a large central low frequency port design that improves airflow and reduces audible turbulence, even at high output levels. A new, full-featured software package gives users control of the system on various platforms, including Windows, macOS, and iPad OS.

KEY MESSAGES | PERFORMANCE

The 2279-1 18-inch woofer delivers transparent, linear bass response down to 31 Hz. This driver uses dual three-inch voice coils and leverages JBL's patented Differential Drive technology to deliver maximum sensitivity and power handling in a light, compact design.

COMPATIBILITY

SRX900 Series subwoofers are acoustically compatible with all SRX900 full-range speakers and support 60 Hz and 80 Hz operating modes. SRX900 line arrays can be ground stacked with SRX900 subwoofers using the optional base plate accessories.

CONTROLLED COVERAGE

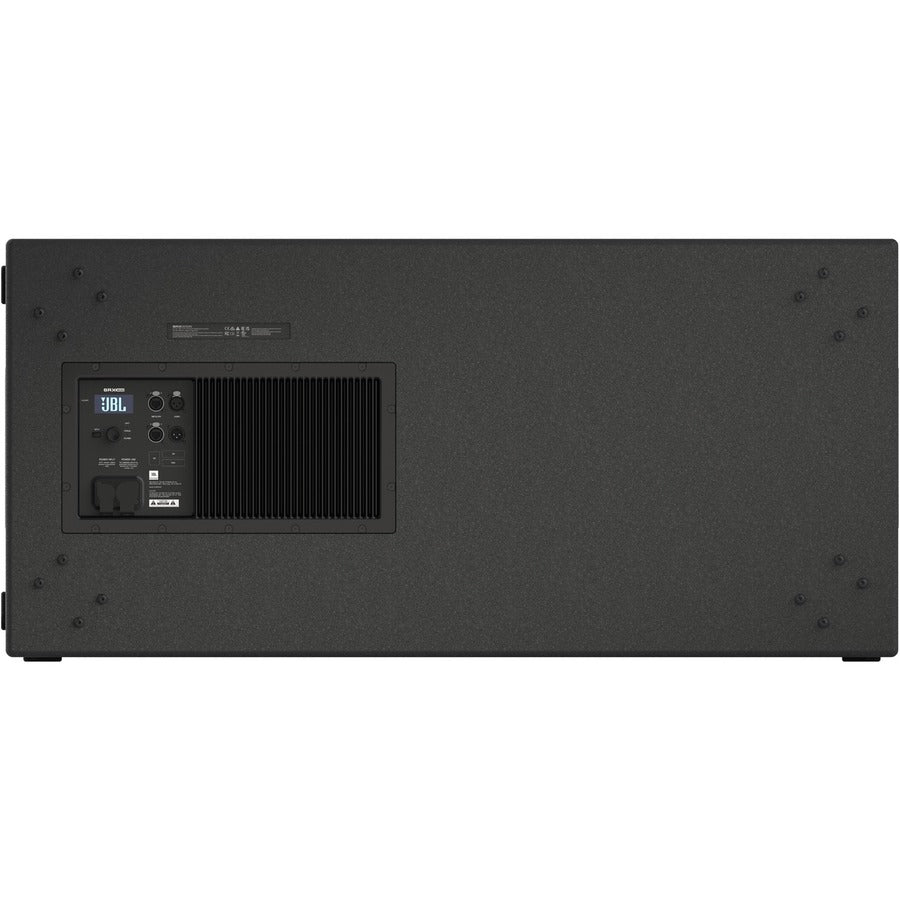

SRX900 subwoofers can be used in omnidirectional or cardioid configurations simply by selecting the appropriate speaker preset and cabinet orientation. The preset can be accessed directly from the rear panel LCD or via software.

POWERED SOLUTION

The fully integrated built-in amplifier and DSP are based on proven JBL technologies and explicitly packaged to fit the needs of the SRX900 Series. The DSP includes everything needed to optimize a system, including 24 user-adjustable filters, 2,000 ms of delay, and advanced features like Array Size Compensation and FIR-based Throw Distance Correction filters.

1

Subwoofer System

• Omnidirectional Sound
• LED Indicator
• IP54
• Plug and Play
• Digital Signal Processing (DSP)

1100 W

Active

Yes

Yes

AC

Floor Mount

22.20"

47.40"

26.80"

155 lb

• SRX928S Dual 18-inch Powered Subwoofer
• 1 x Neutrik NAC3FX-W-TOP
• 1 x Neutrik NAC3MX-W-TOP

• Windows
• Mac
• iPadOS
